Air Shower Basics
Air showers are a tool that allows for people and/or objects to enter a clean area without bringing in unwanted contaminants such as dust and bacteria. Air showers act as a sort of buffer or air lock between two areas of varying cleanliness, and preserve the air quality of a dynamic clean environment. Due to their usefulness and simplicity, air showers are a critical component of modern-day cleanroom facilities.
Air showers employ high-speed currents of air to blow microscopic dust and bacteria particles off of clothing and other surfaces. The air used in air showers runs through a filtration system in order to maintain air purity and avoid recirculation of microscopic contaminants.
Barrier-free air showers are popular for customers who use cleanrooms with a large amount of personnel. The barrier-free design allows for unabated flow into the cleanroom, which decreases wait time and increases operational efficiency.

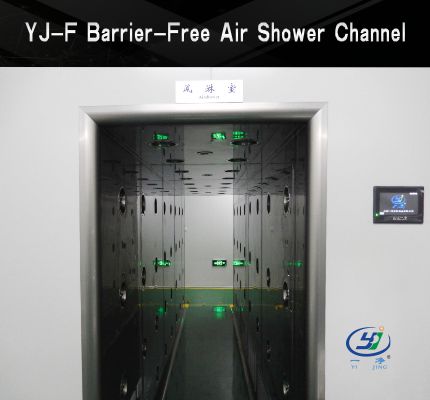

YiJing Air Showers
The YiJing YJ-F Series Barrier-Free Air Shower Channels are available in three different materials: 100% Stainless Steel, Stainless Steel Interior, and Steel Plate. The YJ-F series of air shower channels employ YiJing's patented air shower technologies, and include 360-degree jet nozzles that work at more than 25 m/s. Our smart, automatic YJ-F features a touchscreen LCD color display that allows the user to customize the air shower interval and many other settings, as well as control user access. The YJ-F series comes equipped with many of the same standard features as our YJ-S series, but offers the convenience of a barrier-free design. All YiJing Air Shower models can be customized and configured to meet your specifications.
YiJing F-Series Barrier-Free Air Showers
YiJing Air Shower Advantages
1) Customizable
Choose one or more of our 14 optional features to build the perfect air shower for your needs.
2) Modern
YiJing air showers are manufactured to exacting standards using state-of-the-art machinery including laser cutting and CNC automatic sheet cutting equipment. We use only SUS304-grade stainless steel and high-quality cold-rolled steel plates for our interior and exterior surfaces.
3) Smart
Our air showers come equipped with a 7" LCD touchscreen display PLC system, an OTS error code display system, and available audio prompts and instructions. The system can be set to manual or automatic mode, and includes security features such as a screen lock, delayed light timer, password protection, and total system access control.
4) Dependable
All electrical air shower components, including door locks (LCJ), door seals (Dorma), and LED lights (Omron) employ patented, innovative technologies. All other proprietary technologies are covered in Chinese patent ZL 2010-2 0502252-1.
5) Flexible
We can customize and add features such as UV lights, door configuration, air shower dimensions, interior/exterior materials, ozone generators, infrared sensing technologies, fingerprint access, etc. according to your needs.
| YJ-F Series Barrier-Free Air Shower Spec Sheet |
Model | YJ-F-6 | YJ-F-7 | YJ-F-8 |
Material | Available in 100% SUS304 Stainless Steel and/or High-Quality Steel Plate |
Recommended for x
Cleanroom Personnel | 100+ | 150+ | 200+ |
| Shower Time | 0-99 seconds |
Jet Nozzles | 72 | 84 | 96 |
Nozzle Diameter | 30 mm |
Air Velocity | >25 m/s |
Door Closer | DORMA (German) Door Closer |
Electronic Lock | LCJ Electronic Lock |
Filter Efficacy | ≥99.995% of Particles ≥0.3μm |
Control Panel | 7" LCD Touchscreen PLC Control Panel |
Filter Size
LxWxH (mm) | 600 × 600 × 120 | 820 × 600 × 120 | 600 × 600 × 120 |
No. of Filters | 12 | 14 | 16 |
Outer Size
LxWxH (mm) | 1400 x 6000 x 2100 | 1400 x 7000 x 2100 | 1400 x 8000 x 2100 |
Inner Size
LxWxH (mm) | 800 x 5900 x 1960 | 800 x 6900 x 1960 | 800 x 7900 x 1960 |
Power Source | 380V/50Hz (Also Available in 220V and 110V) |
Lighting | 6 Recessed LED | 7 Recessed LED | 8 Recessed LED |
Fan Power
(# x Kw) | 12 x 0.55 | 14 x 0.55 | 16 x 0.55 |
| Weight（kg） | 1850 | 2150 | 2450 |
————————————————————————————
